[Python] Morophological 구현 (모폴로지 연산 그림으로 설명)

오늘은 영상처리에서 자주 사용되는 모폴리지 처리에 대해 포스팅하겠다. 구현은 scipy 라이브러리의 ndimage 함수를 사용했다.



Morphological Operations

• An important part of image analysis involves understanding the shape of the objects in that image through morphological operations



• Morphology means form or structure



• The goal is to transform the structure or form of the objects using a structuring element



• Morphological operations can be applied on binary, grayscale and color images



- Dilation, Erosion, Opening, and Closing





Dilation

•The dilation of the image I with a structuring element S is denoted as (I + S)



1. Foreground pixels in an image grow or expand



2. Fill small holes in an object



3. Combine objects that are close enough to each other but are not connected

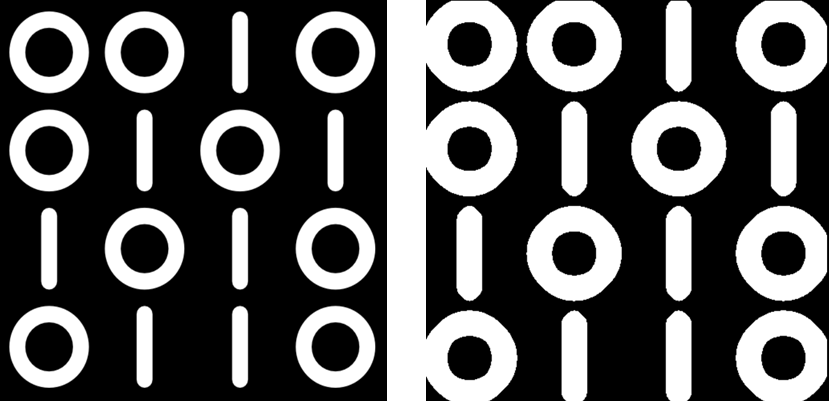

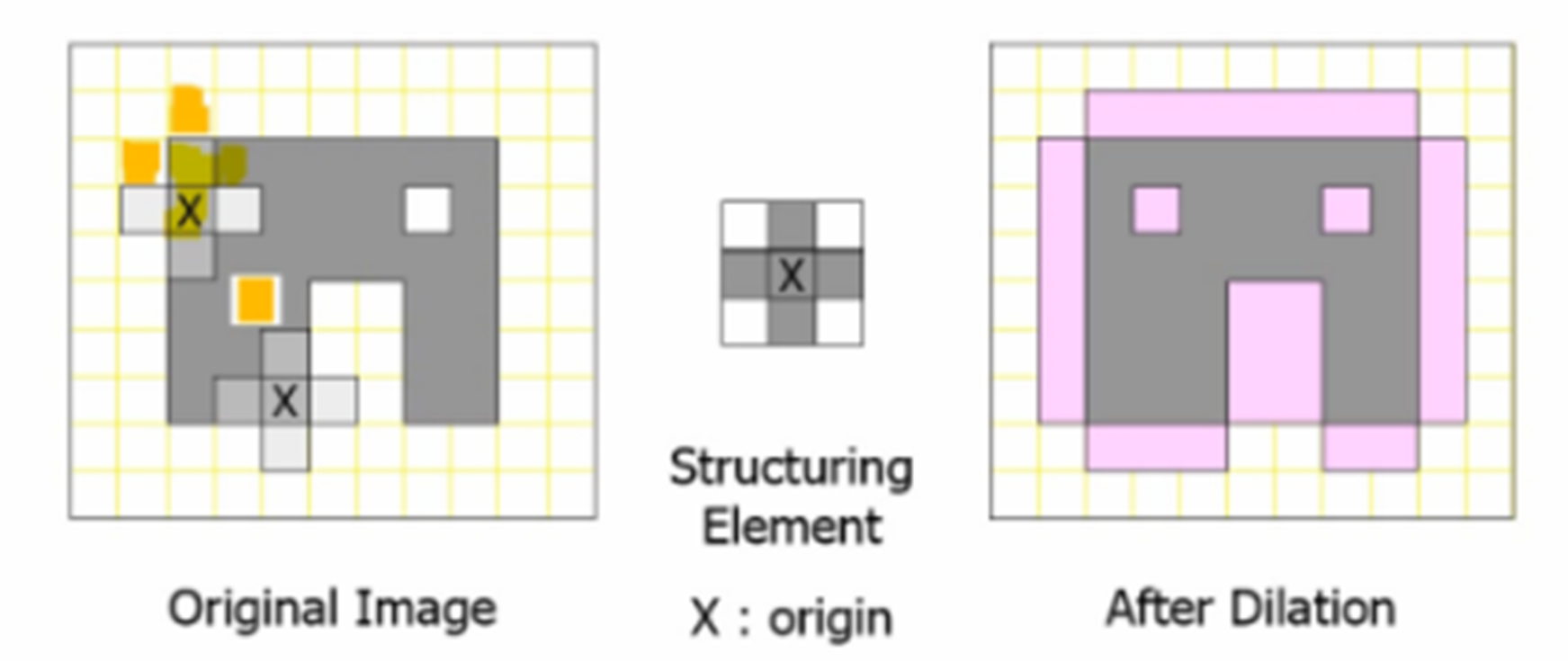

Dilation



[Dilation 구현]

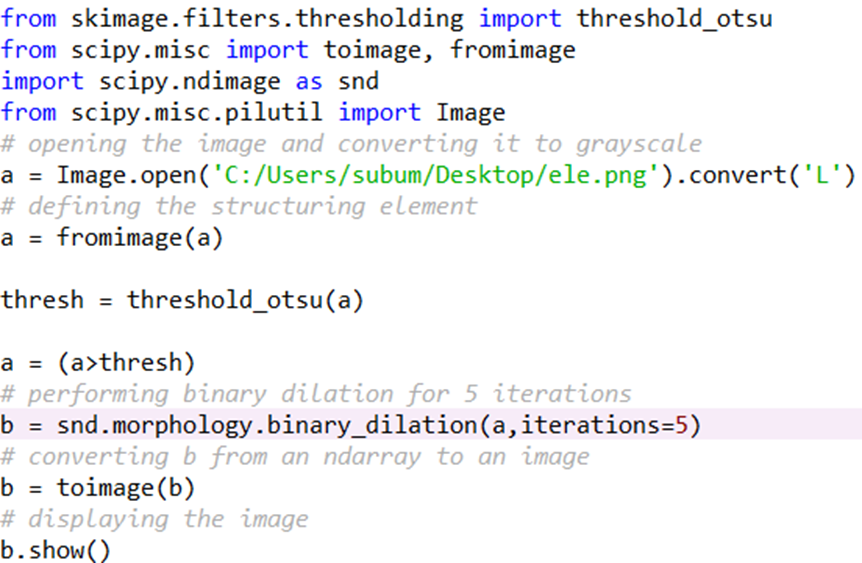

Dilation 구현



Erosion

• The erosion of the image I and with a structuring element S is denoted as (I - S)



- Shrink objects in an image by removing pixels



- Erosion is opposite of dilation.

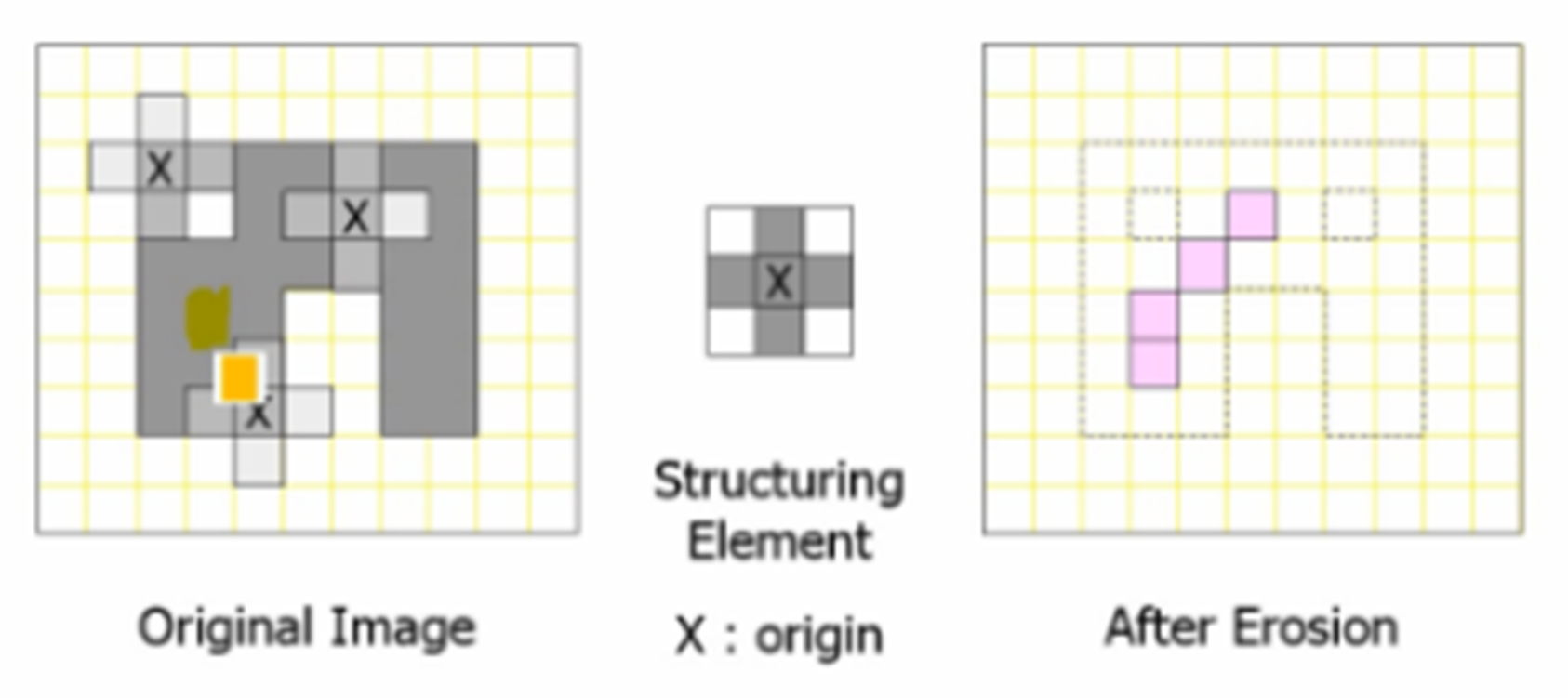

Erosion



Erosion 구현



Opening and Closing

• Opening and closing operations are complex morphological operations



• They are obtained by combining dilation and erosion



• Opening and closing can be performed on binary, grayscale and color images.

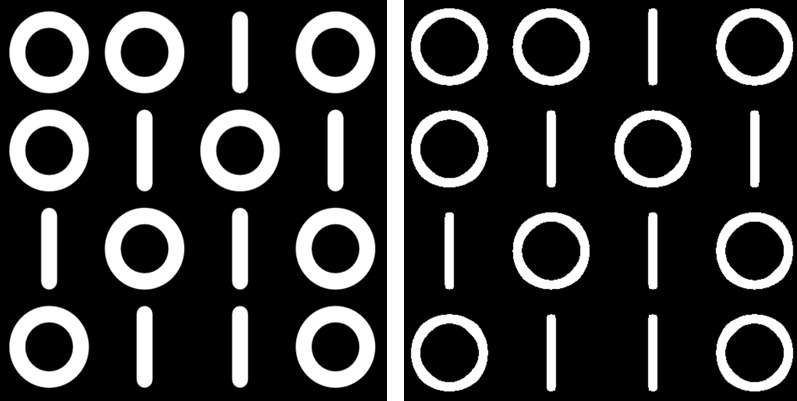

위: Opening, 아래: Closing



Opening

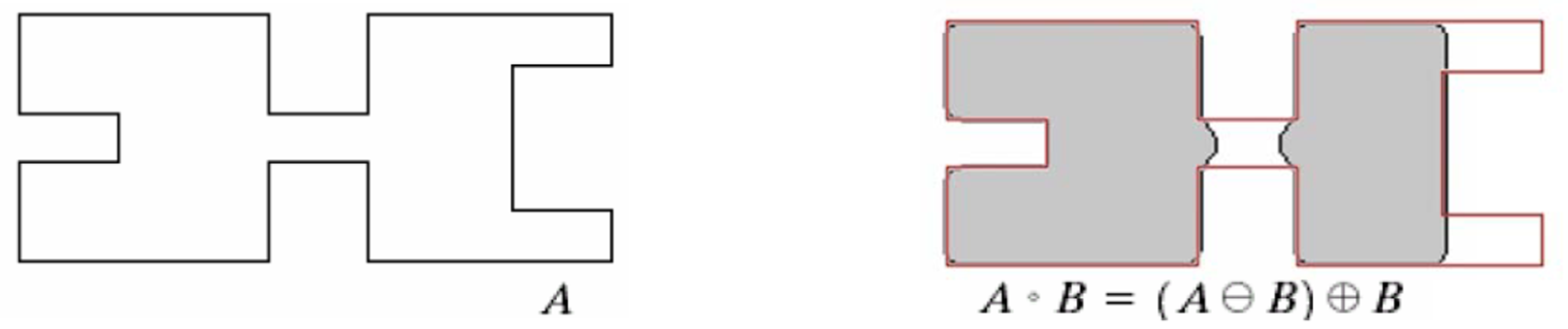

Opening = Erosion 후 Dilation 예시



• Opening generally smooths a contour in an image, breaking narrow isthmuses and eliminating thin protrusions

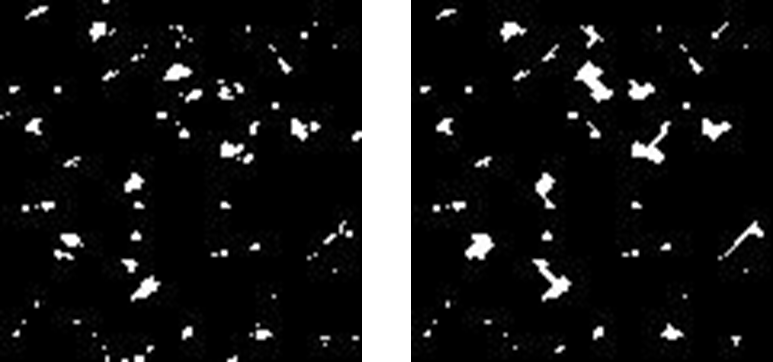

Opening 예시

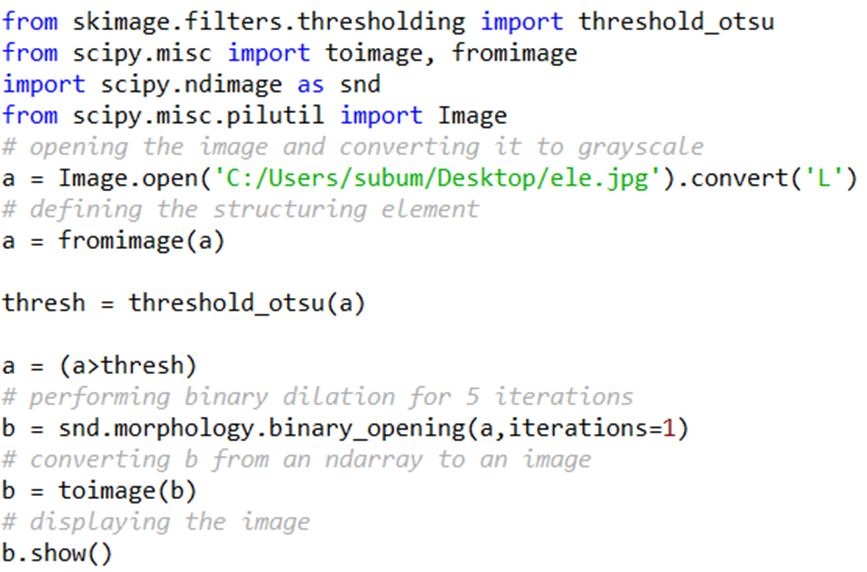

Opening 구현

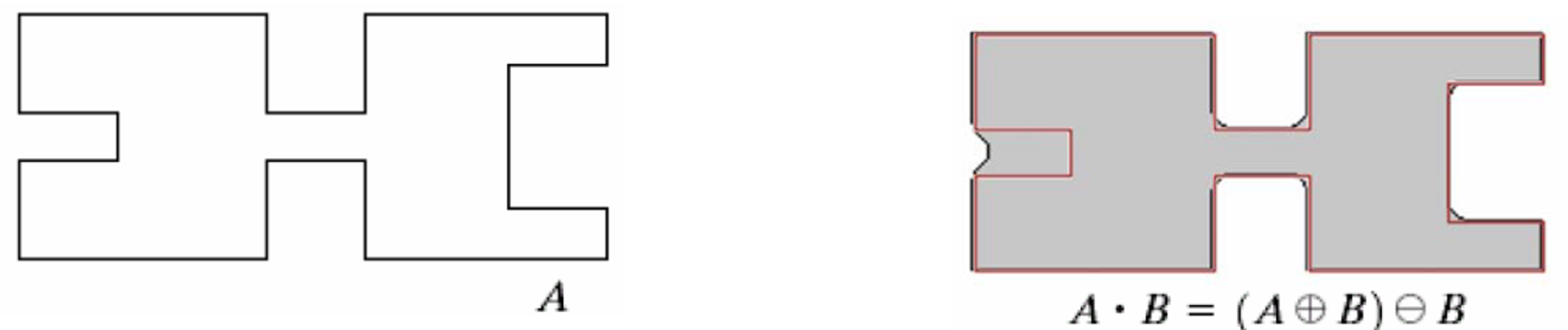

Closing

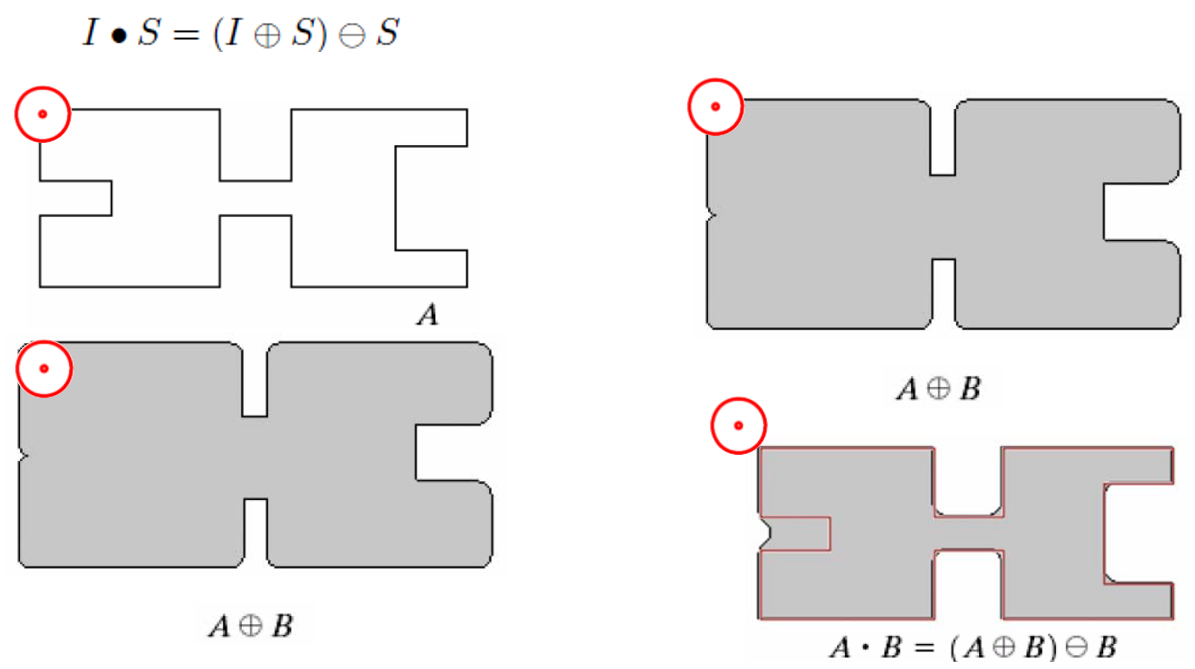

Opening = Dilation 후 Erosion 예시



• Closing tends to narrow smooth sections of contours, fusing narrow breaks and long thin gulfs, eliminating small holes, and filling gaps in contours

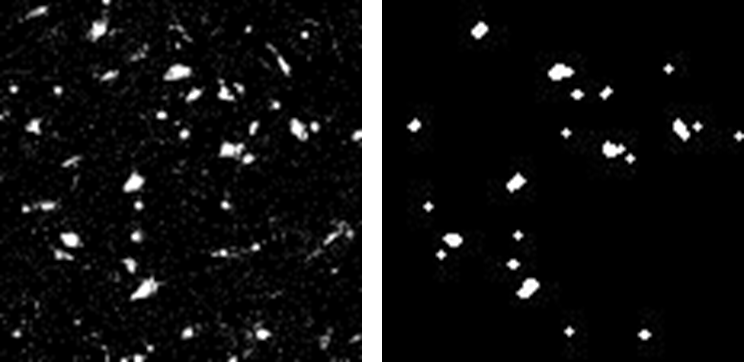

Closing 예시



Closing 구현
